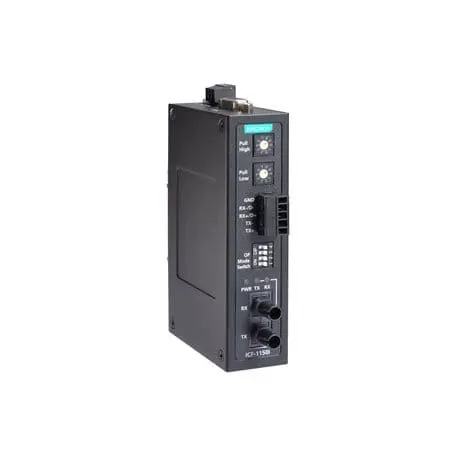

ICF-1150I-S-SC-T-IEX
Industrial RS-232/422/485 to Fiber Optic Converter, SC Single mode, with 2kV Serial Isolation, -40 to 85 ℃, IECEx Certification Approval
0 products currently in stock.
The stock was last updated at 9:36 pm Thursday, 25 April, 2024. Please contact us for lead times if needed.
Introduction
The ICF-1150 serial-to-fiber converters transfer RS-232/RS-422/RS-485 signals to optical fiber ports to enhance transmission distance. When an ICF-1150 device receives data from any serial port, it sends the data through the optical fiber ports. These products not only support single-mode and multi-mode fiber for different transmission distances, models with isolation protection are also available to enhance noise immunity. The ICF-1150 products feature Three-Way Communication and a Rotary Switch for setting the pull high/low resistor for onsite installation.
Three-Way Communication
The ICF-1150 Series supports 2 serial ports, with a DB9 connector for RS-232 communication and a removable terminal block for RS-422 or RS-485 communication. The 3 ports (2 serial ports and one fiber port) are completely independent. When an ICF-1150 converter receives data from any one port, it will send the data through the other 2 ports. For example, once the ICF-1150 converter receives a command from the remote master through the fiber port, it will convert the signal and send the command through the RS-232 and RS-422/485 ports at the same time. If the user is monitoring a system running on an RS-485 network, there is no need to use an additional RS-232 to RS-485 converter to connect the laptop computer’s serial port to the RS-485 bus.
Rotary Switch for Setting the Pull High/Low Resistor
The RS-485 interface supports multidrop or daisy-chain connections, which system engineers will use to connect serial devices such as meters, RTUs, and readers, together on the same bus. Since the number of serial devices on the same bus will cause the impedance of the data line to increase, the ICF-1150 allows users to tune the pull high/low resistor. Just rotate the switch to the appropriate value without removing the ICF-1150 from the DIN rail.
Additional information
No. of Ports | |
---|---|
RS-232 | |
RS-422 | |
RS-485-4w | |
Input Current | |
Input Voltage | |
Housing | |
Ambient Relative Humidity | |
EMC | |
EMI | |
EMS | |
Time | |
Standards | |
RS-485 Data Direction Control | |
Terminator for RS-485 | |
Warranty Period | |
Details | |
IP Rating | |
Operating Temperature | -40 to 85°C (-40 to 185°F) |
Safety | |
Vibration |
