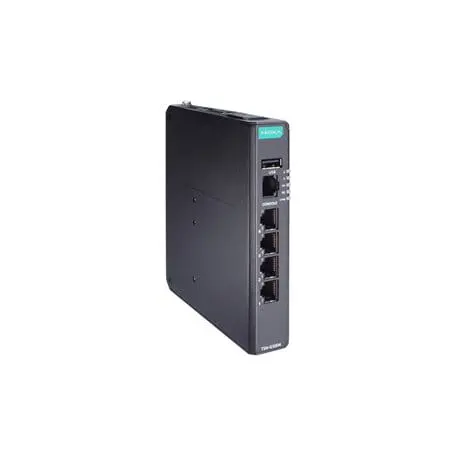

TSN-G5004 Series
Home
shop
LAN Switches

TSN-G5004 Series

4G-port full Gigabit managed Ethernet switch
  • Compact and flexible housing design to fit into confined spaces
  • Web-based GUI for easy device configuration and management
  • Security features based on IEC 62443
  • IP40-rated metal housing
Series Description

Introduction

The TSN-G5004 Series switches are ideal for making manufacturing networks compatible with the vision of Industry 4.0. The switches are equipped with 4 Gigabit Ethernet ports. The full Gigabit design makes them a good choice for upgrading an existing network to Gigabit speed or for building a new full-Gigabit backbone for future high-bandwidth applications.
The compact design and user-friendly configuration interfaces provided by the new Moxa web GUI make network deployment much easier. In addition, future firmware upgrades of the TSN-G5004 Series will support real-time communication using standard Ethernet Time-Sensitive Networking (TSN) technology.

PRODUCTS IN THIS SERIES

Click here to show filters

TSN-G5004

4G-port full Gigabit managed Ethernet switch, 4 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature

£1,134.00

Available on back-order

Add to quote
See Product

Other Series

A series refers to a collection of related products or components designed to work together seamlessly, typically within a specific industry or application. These series often share similar features and functionalities, ensuring compatibility and ease of integration for users.
Supported Documents
Name Type Version Operating System Release Date


SNMP MIB File for TSN-G5000 Series




187.8 KB
Software Package

A7A4624DF87AB78BD1E31C63525DC67C1B49FAF709F67A28DFA118A35B78314F0C7A62EE615691AAAC8230C84C6508B074042B08C2DA4300A05D1FB5234A0337

SHA-512
v1.0

Jul 03, 2020
Jul 03, 2020

Release notes

Show All

S

Supported Documents

Name Type Version Release Date


QIG for TSN-G5000 Series


2.9 MB

 QIG
v1.1
May 07, 2021
May 07, 2021


Datasheet for TSN-G5004 Series


702.3 KB

 Datasheet
v1.0
Jul 03, 2020
Jul 03, 2020


Manual for TSN-G5004 Series (Web Console)


4.7 MB

 Manual
v1.0
Jul 03, 2020
Jul 03, 2020


Manual for TSN-G5004 Series (Command Line Interface)


1.6 MB

 Manual
v1.0
Jul 03, 2020
Jul 03, 2020


2D CAD for TSN-G5004 Series (TSN-G5004 )


1.2 MB

 2D CAD
Jul 03, 2020
Jul 03, 2020

Show All
