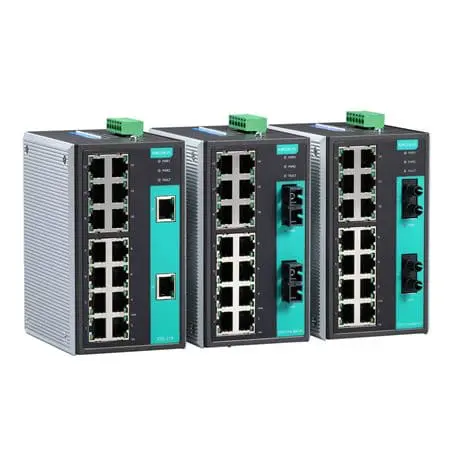

EDS-316 Series
Home
shop
LAN Switches

EDS-316 Series

16-port unmanaged Ethernet switches
  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • -40 to 75°C wide operating temperature range (-T models)
Series Description

Introduction

The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network  engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.

The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.

PRODUCTS IN THIS SERIES

Click here to show filters

EDS-316-MM-ST

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, -10 to 60°C

£590.00

Available on back-order

Add to quote
See Product

EDS-316-MM-SC

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -10 to 60°C

£590.00

Available on back-order

Add to quote
See Product

EDS-316-M-ST

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, -10 to 60°C

£524.00

Available on back-order

Add to quote
See Product

EDS-316-S-SC

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, -10 to 60°C

£620.00

Available on back-order

Add to quote
See Product

EDS-316

Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, -10 to 60°C

£411.00

10 in stock (can be backordered)

Add to quote
See Product

EDS-316-M-SC

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -10 to 60°C

£524.00

Available on back-order

Add to quote
See Product

Other Series

A series refers to a collection of related products or components designed to work together seamlessly, typically within a specific industry or application. These series often share similar features and functionalities, ensuring compatibility and ease of integration for users.
Supported Documents
Name Type Version Release Date


QIG for EDS-316 Series


2.8 MB

 QIG
v6.3
Feb 03, 2023
Feb 03, 2023


Datasheet for EDS-316 Series


734.0 KB

 Datasheet
v1.3
Jan 13, 2023
Jan 13, 2023


Tech Note: Recommended Procedure for STP Cable Grounding on Moxa’s Industrial Ethernet Switches


558.3 KB

 Tech Note
v1.0
Feb 12, 2019
Feb 12, 2019


2D CAD for EDS-316-M-SC


250.3 KB

 2D CAD
Jan 19, 2018
Jan 19, 2018


2D CAD for EDS-316-M-ST


249.3 KB

 2D CAD
Jan 19, 2018
Jan 19, 2018


2D CAD for EDS-316-MM-ST


248.8 KB

 2D CAD
Jan 19, 2018
Jan 19, 2018


2D CAD for EDS-316-MM-SC


249.5 KB

 2D CAD
Jan 19, 2018
Jan 19, 2018


2D CAD for EDS-316


247.8 KB

 2D CAD
Jan 19, 2018
Jan 19, 2018

Show All
