Introduction

Moxa’s MXview network management software is designed for configuring, monitoring, and diagnosing networking devices in industrial networks. MXview provides an integrated management  platform that can discover networking devices and SNMP/IP  devices installed on subnets. All selected network components can be managed via a web browser from both local and remote sites—anytime and anywhere.

In addition, MXview supports the optional MXview Wireless add-on module

This feature requires the MXview Wireless add-on license (LIC-MXview-ADD-WIRELESS-MR), which can be purchased  separately. An active MXview license is required in order to  activate the add-on license.

MXview Wireless provides additional advanced functions for  wireless applications to monitor and troubleshoot your network, and help you minimize downtime.

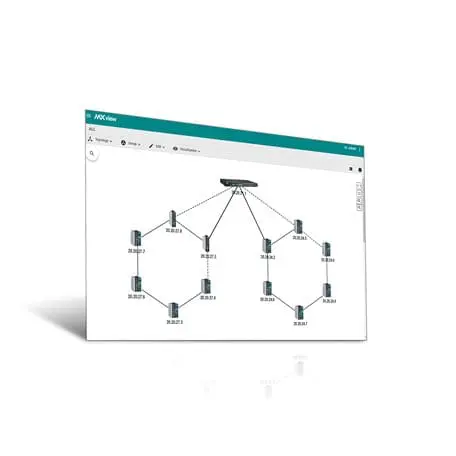

Visualization

• Discovers up to 2,000 Moxa devices and SNMP/ICMP devices within scan range

• Visualization of redundant link status and device roles of network redundancy protocols

• Visualization of graphic VLAN groups

• Security view for the security status of network devices with industrial security standard

• Displays third-party device icons

• A network management dashboard to view the network  status quickly

• Visualization of network traffic loading with color-coded links

• Device front panel visualization, including ports and LED indicators

• Visualization of managed PoE device power consumption

• Wireless device dashboard that shows dynamic AP-client relationships and performance indicator charts for wireless devices

  This feature requires the MXview Wireless add-on license  (LIC-MXview-ADD-WIRELESS-MR), which can be  purchased separately. An active MXview license is required in order to activate the add-on license.


• Roaming playback to review a client’s roaming status

  This feature requires the MXview Wireless add-on license  (LIC-MXview-ADD-WIRELESS-MR), which can be  purchased separately. An active MXview license is required in order to activate the add-on license.


Network Diagnostics and Event Notification

• Detect problems in real-time with SNMP trap/inform, or periodic polling

• Generate trend graphs to track bandwidth utilization and error packet rate statistics, accurate to four decimal places

• Supports Syslog server for centralized message management

• Configurable event notification alarms sent through email, Microsoft Teams, Slack, MXview ToGo. and SNMP trap, or locally through program notification, message box, and audio alerts

• Multiple options for events and notifications with self- defined threshold and duration

• Generate OPC 2.0 compliant tags automatically to integrate with SCADA/HMI applications

• Group health OPC tag represents entire network status

• Real-time device availability monitoring

• Supports third-party Ethernet switches through MIB files

• Collaborate with third-party NMS through SNMP traps

• Provides RESTful API and web widget for integrating MXview into the existing system

Comprehensive Reports

• Maintain device availability reports and record for up to 90 days

• Generate an inventory report for each device on the network

• Compile comprehensive device properties report

• Generate network traffic trend reports

Centralized Configuration and Firmware Management

• Manage device firmware from a single platform

• In one click, back up the configuration of multiple devices and the entire MXview database, including topology, job scheduling, events, and device properties

• Scheduling for periodic configuration backup

• Save history of configuration changes

• Comparison tool for checking differences between two configurations

Mobile App for Network Monitoring

• MXview ToGo mobile app for remote monitoring and  notification—anytime, anywhere

• Smart Device Identification with QR Code enhances  operational efficiency

• Device Locator with mobile app reduces searching time at field sites
