Industrial LTE Cat. 3 cellular gateways

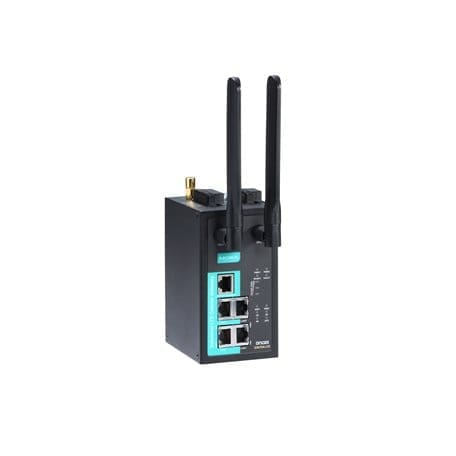

OnCell G3470A-LTE-EU-T

Name: OnCell G3470A-LTE-EU-T
Brand: Moxa
SKU: OnCellG3470ALTEEUT
Price: 1091 GBP
Availability: OutOfStock
Rating: 5 (4 reviews)

£1,091.00

There are currently 0 products in stock.

Out of stock

Industrial LTE Cat. 3 cellular gateways

OnCell G3470A-LTE-EU-T

£1,091.00

End of life product Replacement available Please note that the OnCell G3470A-LTE Series has been phased out, and has been replaced by the OnCell G4302-LTE4 Series.

Additional information

Cellular Standards	GSM, GPRS, EDGE, UMTS, HSPA, LTE CAT-3
Total Port Count	4
Management	ARP, DDNS, DHCP server, DNS, HTTP, SMTP, SNMPv1/v2c/v3, TCP/IP, UDP, Telnet, Web Console, Serial Console, Remote SMS Control, Wireless Search Utility, OnCell Central Manager, GuaranLink
Security	HTTPS, IPsec, SSH
Authentication	PSK/X.509/RSA
Alarm Contact Channels	1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Inputs	1 +13 to +30 V for state 1 3 to -30 V for state 0
Buttons	Reset button
LED Indicators	PWR1, PWR2, READY, FAULT, CELLULAR SIGNAL, SIM1, SIM2, 2G, 3G, 4G, GPS
GPS Antenna Connector	1 SMA female, GPS (1575.42 MHz), GLONASS (1602 MHz)
Input Current	0.7 A @ 12 VDC, 0.2 A @ 48 VDC
Input Voltage	12 to 48 VDC, Redundant dual inputs
Housing	Aluminum
IP Rating	IP30
Operating Temperature	-30 to 70°C (-22 to 158°F)
Safety	UL 60950-1
EMC	EN 61000-6-2/-6-4
EMI	CISPR 22, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10
Radio Frequency	FCC ID N7NMC7355, EN 301 489-1, EN 301 489-7, EN 301 511
Time	327,326 hrs
Standards	Telcordia SR332
Warranty Period	5 years
Details	See www.moxa.com/warranty
Power Connector	Terminal block
