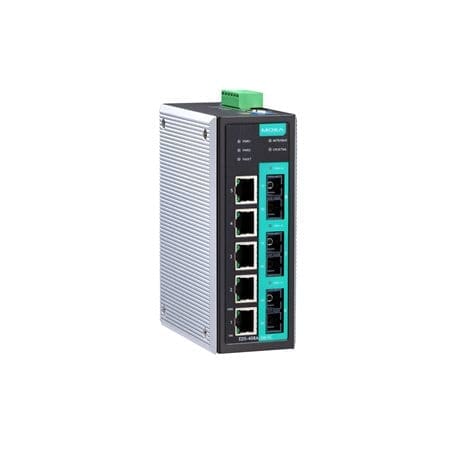

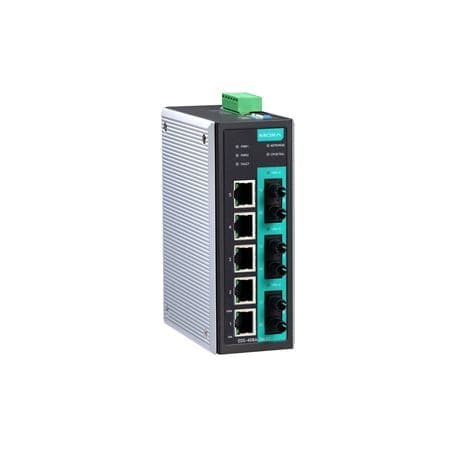

The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, Modbus TCP and PROFINET protocols for device management and monitoring
EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available
PROFINET GSDML file and SIMATIC STEP 7 device icons available
Port mirroring for online debugging
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
RMON for proactive and efficient network monitoring
SNMPv1/v2c/v3 for different levels of network management security
Bandwidth management to prevent unpredictable network status
| Ethernet Interface | 10/100BaseT(X) Ports (RJ45 connector) 5 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection 100BaseFX Ports (multi-mode SC connector) 3 Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol Optical Fiber Information Found On Datasheet |
|---|---|
| Ethernet Software Features | Filter 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN Industrial Protocols EtherNet/IP, Modbus TCP Management Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP MIB Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB Redundancy Protocols RSTP, STP, Turbo Chain, Turbo Ring v1/v2 Time Management NTP Server/Client, SNTP |
| Switch Properties | IGMP Groups 256 MAC Table Size 8 K Max. No. of VLANs 64 Packet Buffer Size 1 Mbits Priority Queues 4 VLAN ID Range VID 1 to 4094 |
| Serial Interface | Console Port RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1) |
| DIP Switch Configuration | Ethernet Interface Turbo Ring, Master, Coupler, Reserve |
| Input/Output Interface | Alarm Contact Channels Relay output with current carrying capacity of 1 A @ 24 VDC |
| Power Parameters | Connection 1 removable 6-contact terminal block(s) Input Voltage 12/24/48 VDC, Redundant dual inputs Operating Voltage 9.6 to 60 VDC Input Current 0.73 @ 12 VDC 0.35 @ 24 VDC 0.18 @ 48 VDC Overload Current Protection Supported Reverse Polarity Protection Supported |
| Physical Characteristics | Housing Metal IP Rating IP30 Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) Weight 890 g (1.97 lb) Installation DIN-rail mounting, Wall mounting (with optional kit) |
| Environmental Limits | Operating Temperature -10 to 60°C (14 to 140°F) Storage Temperature (package included) -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) |
| Standards and Certifications | Safety EN 60950-1, UL 508 EMC EN 55032/24 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF Railway EN 50121-4 Traffic Control NEMA TS2 Freefall IEC 60068-2-31 Shock IEC 60068-2-27 Vibration IEC 60068-2-6 |
| MTBF | Time 1,253,072 hrs Standards Telcordia (Bellcore), GB |
| Warranty | Warranty Period 5 years Details See http://www.moxa.com/warranty |
