AirBox/10
0 products currently in stock. Call our team for lead times if needed.
£513.00
Available on back-order
AirBox/10
£513.00

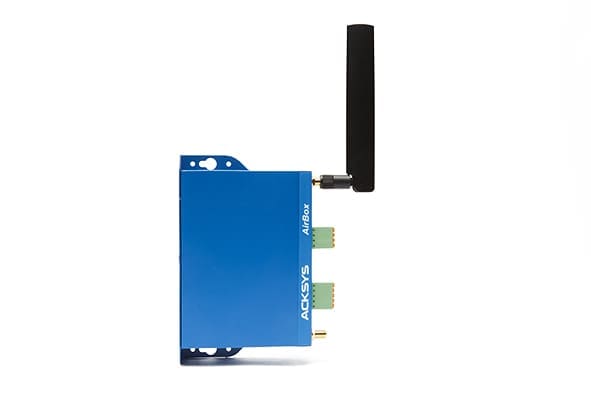

802.11n WiFi access point, client, repeater in compact format
0 products currently in stock.
The stock was last updated at 1:13 pm Monday, 22 April, 2024. Please contact us for lead times if needed.
Introduction
Available in dual WiFi radio version (11n + 11ac), AirBox fits directly into the era of Industry 4.0 by offering dual band (2.4 / 5GHz) connectivity to objects (IIoT, PLCs, tablets …) and strengthening the communication between machines (M2M). AirBox supports up to 80 clients connected simultaneously (@ 2Mbps) in AP mode and can be integrated in electrical cabinets as in tight spaces (antenna fitted externally).
The single radio model (WiFi 11n) can be used in client mode to remotely connect any Ethernet equipment or PLCs as well as mobile devices (trolleys, AGVs) to the factory wireless infrastructure.
AirBox advantageously leverages MIMO technology to strengthen the radio link and features a high-performance roaming algorithm (< 30ms) to ensure seamless communication in motion, even in environments with very high density of AP.
AirBox embedded intelligence simplifies the network design and does not require any wireless LAN controller.
Administration is centralized via ACKSYS WaveManager software.
Network is secured thanks to AirBox high level of security (Firewall, VPN, 802.1X …).
Two pairs of digital I/O are controllable with the SNMP protocol to operate remote equipment or read the logic state of a signal.
Need Support?
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Product Brand
AirBox Series
Available on back-order
Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports, 1 100BaseFX single-mode port with SC connectors, -40 to 75°C operating temperature
Available on back-order
Managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -40 to 75°C operating temperature
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperature
Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, single power input 110/220 VAC/VDC, -10 to 60°C operating temperature
L2 managed switch with 16 10/100BaseT(X) ports, and 2 10/100/1000BaseT(X) ports with M12 connectors, 2 Gigabit ports with bypass relay function, dual power input, 24 to 110 VDC, conformal coating, -40 to 75℃
Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -25 to 60°C operating temperature
2U Rackmount chassis, with a single 36 to 53 VDC input, 18 slots on the front panel, and CSM-MN01 managed module
Datasheet
Technical documentation
Application notes
- APPNOTE_WaveOS-Wireless-link_APNUS003.pdf
- APPNOTE_NAT-configuration-example_APNUS013.pdf
- APPNOTE_OpenVPN-tunnel_APNUS015.pdf
- APPNOTE_Connect-Before-Break_APNUS016.pdf
- APPNOTE_GRE-tunnel-over-WiFi_APNUS018.pdf
- HOWTO_IPv6-SLAAC-RA-Server_APNUS025.pdf
- APPNOTE_RogueAP-detection_APNUS027.pdf
- HOWTO_Upgrade-firmware_APNUS028.pdf
- HOWTO_BackupRestore-Conf-Files_APNUS029.pdf
- HOWTO_Change-basic-parameters-with-CLI-commands_APNUS030.pdf
3D views
Firmware
WaveOS firmware upgrade package, release notes It is recommended to save your configuration to a PC prior to upgrade the firmware |
4.22.0.1 Vx230713 |
BIN |
MIB (SNMP) |
3.20.0.1 Vx230713 |
|
WaveOSÂ : Download the user guide |
– |
|
4G cards firmware update package | 6.3 vx181025 |
Software
WaveManager : Deployment & centralized management software for WaveOS-based WiFi products, Windows platforms | 3.6.0.1 vx230613 |
|
Download the user guide | – |
