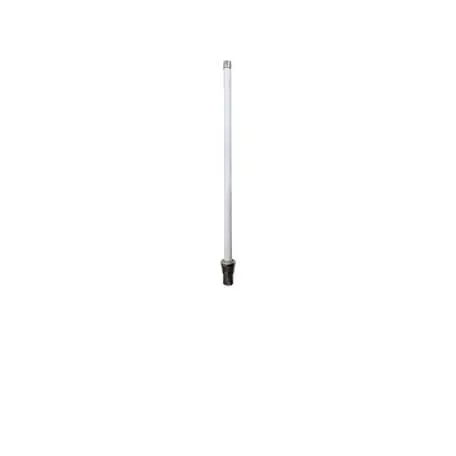

ANT-WDB-ONF-0709 Series

07 dBi at 2.4 GHz and 09 dBi at 5 GHz, N-type (female), dual-band omnidirectional antenna

High-gain antenna to enhance performance
Waterproof N-type connector
Lightweight
Compact form factor
Pole-mounting support
Housing provides IP65 protection
-40 to 80°C operating temperature range

Series Description

Introduction

The ANT-WDB-ONF-0709 is an omnidirectional dual-band high-gain antenna with a waterproof N-type female connector. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Field Patterns

X-Y Plane

X-Z Plane

Y-Z Plane

PRODUCTS IN THIS SERIES

Click here to show filters

ANT-WDB-ONF-0709

07 dBi at 2.4 GHz and 09 dBi at 5 GHz, N-type (female), dual-band omnidirectional antenna

£102.00

Available on back-order

Add to quote
See Product

Other Series

A series refers to a collection of related products or components designed to work together seamlessly, typically within a specific industry or application. These series often share similar features and functionalities, ensuring compatibility and ease of integration for users.
Supported Documents
Name Type Version Release Date


Datasheet for ANT-WDB-ONF-0709 Series


5.2 MB

 Datasheet
v1.0
Jul 22, 2022
Jul 22, 2022
